PCB DESIGN CONSULTING

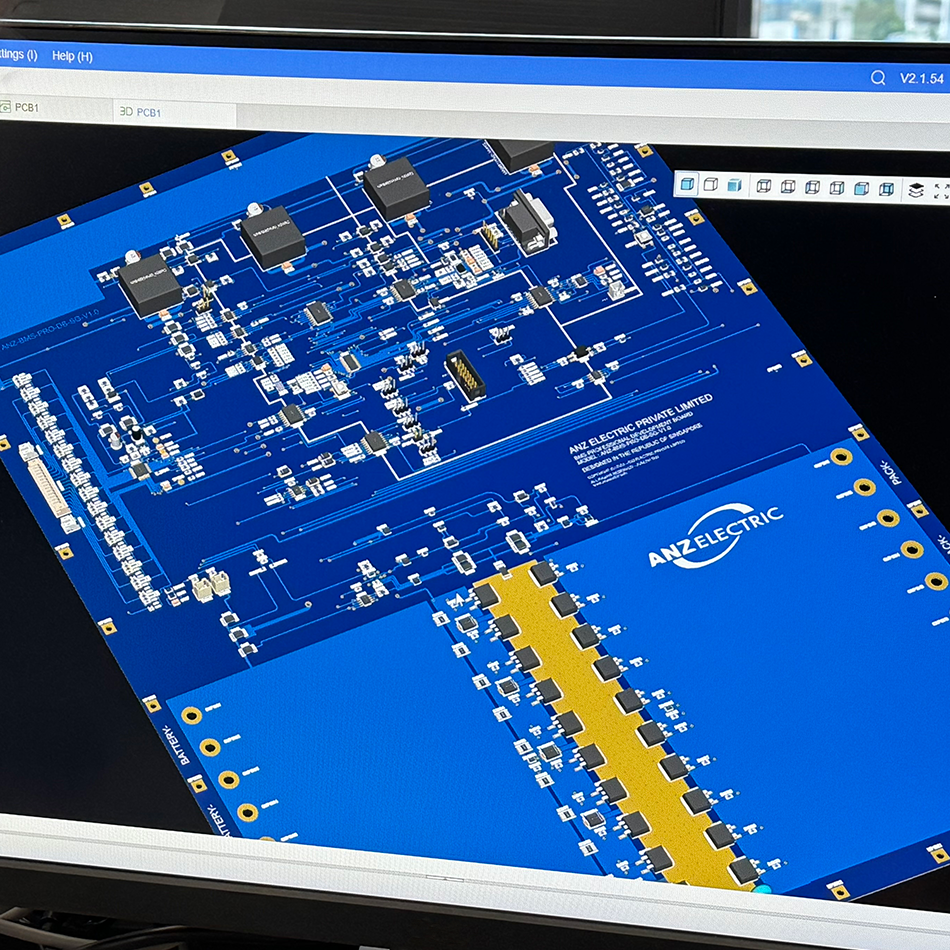

PCB design consulting is the engineering bridge between a circuit that works in principle and a board that can be sourced, fabricated, assembled, inspected and repeated reliably.
Every footprint, material, via, clearance and component choice can affect cost, availability, yield, inspection and reliability. ANZ brings manufacturing perspective into the design stage.
Resolve manufacturability and assembly issues before prototype rework or production delays.
Balance electrical performance, availability, fabrication capability and cost.
Prepare files, BOM data and build requirements for controlled manufacturing.
Our review concentrates on the areas most likely to influence manufacturability, component risk, assembly quality and the transition from prototype to volume.
Placement, routing, layer structure, clearances and fabrication considerations.
Package selection, availability, alternates and assembly implications.
Fabrication and assembly review to reduce avoidable process risks.
Gerber, BOM, centroid and build information prepared for release.
Each stage turns project information into reviewed, optimized and production-ready PCB data.
Application, constraints, schematic, layout and BOM context.
Layout, stack-up, component and build-risk review.
Recommendations, trade-offs and agreed changes.
Clear data for prototype or controlled manufacturing.
Tell us about your application, design maturity, target build and key constraints. Our team will help identify the right next step.
